Metadata Columns in Custom Actions and NITRO Workflows

Applies to: SharePoint Online and On-Premises

Description

This document describes how SharePoint Managed Metadata (Metadata) columns can be used in NITRO Custom Actions (CA) and NITRO Workflows.

The objective is to provide Metadata Column support in standard NITRO scenarios where Lookup columns are commonly used and to support Metadata-specific functionality such as:

Reading the selected Metadata term value
Reading the Term ID
Handling single-value and multi-value Metadata columns
Retrieving Term Custom Properties
Using Metadata values in Conditions
Using Metadata values in Column Mapping
Using Metadata values in Query List

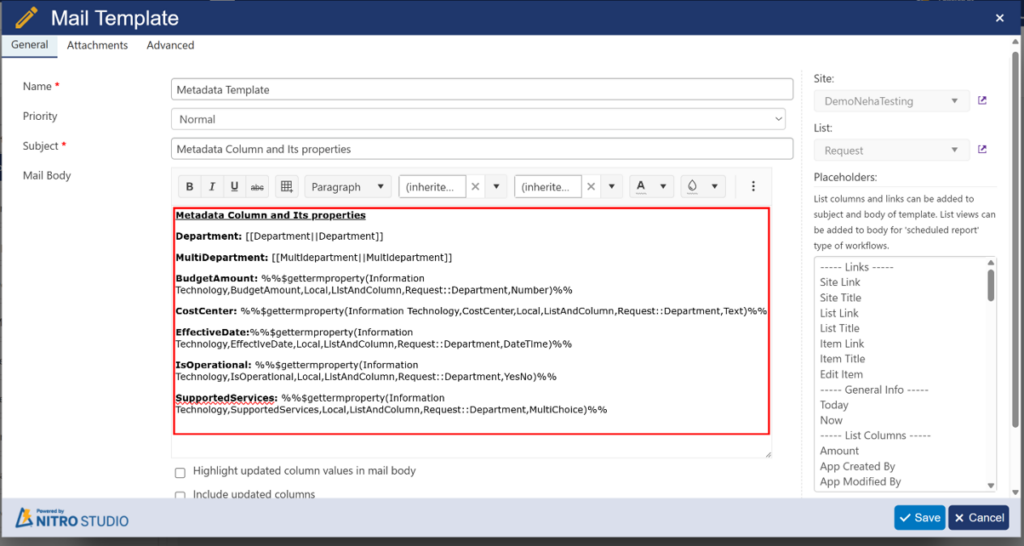

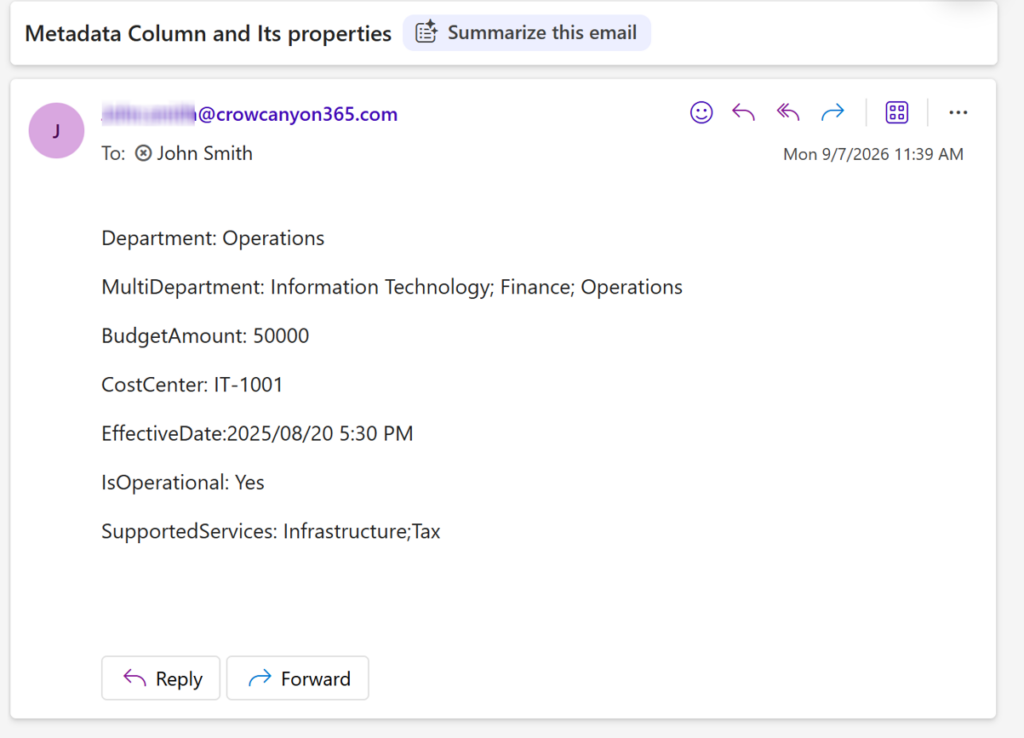

Using Metadata values in Send Mail

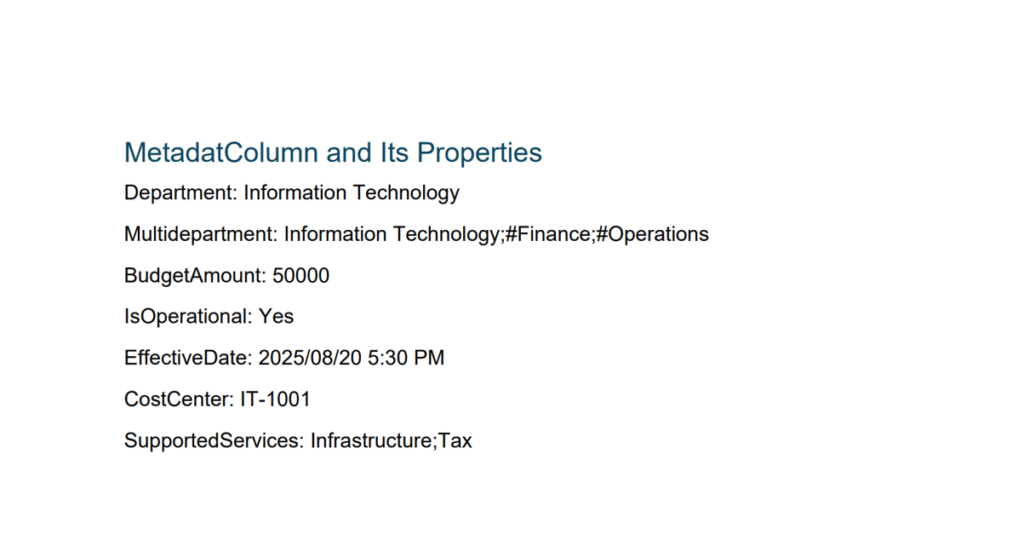

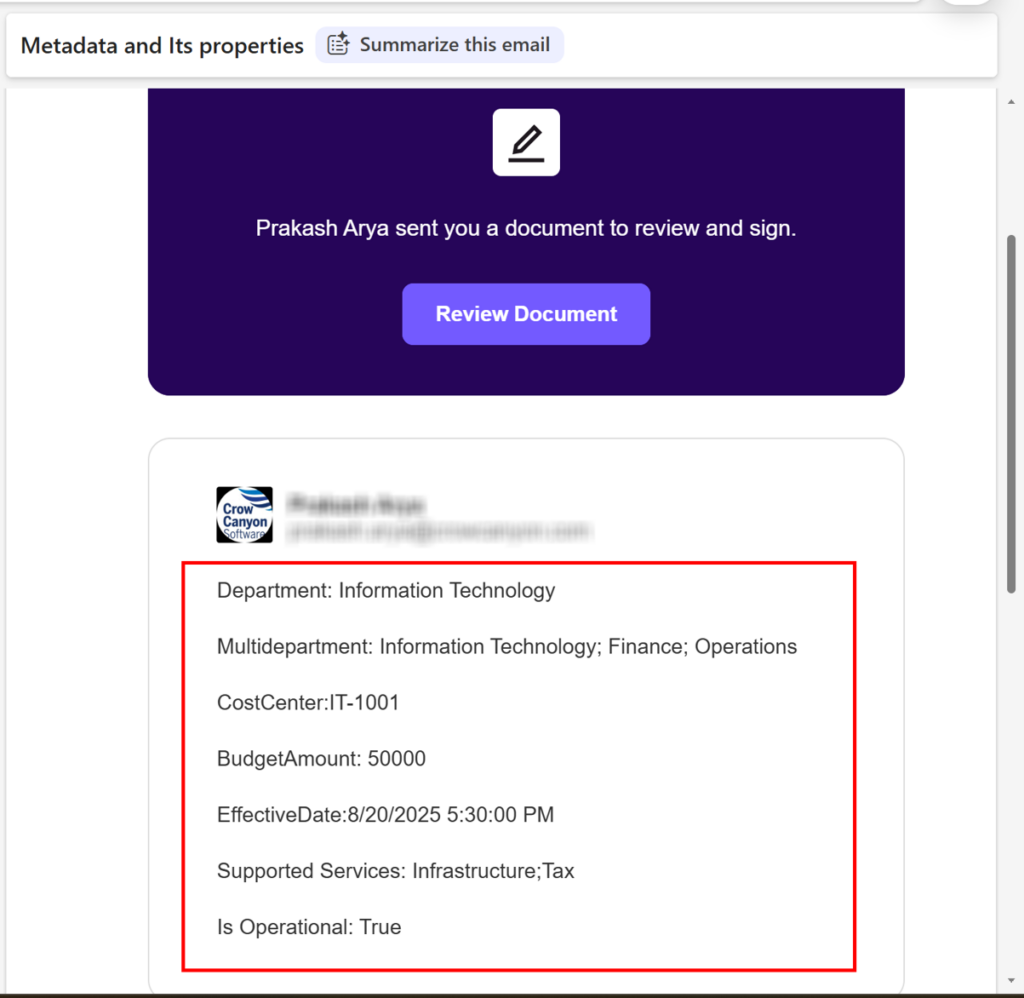

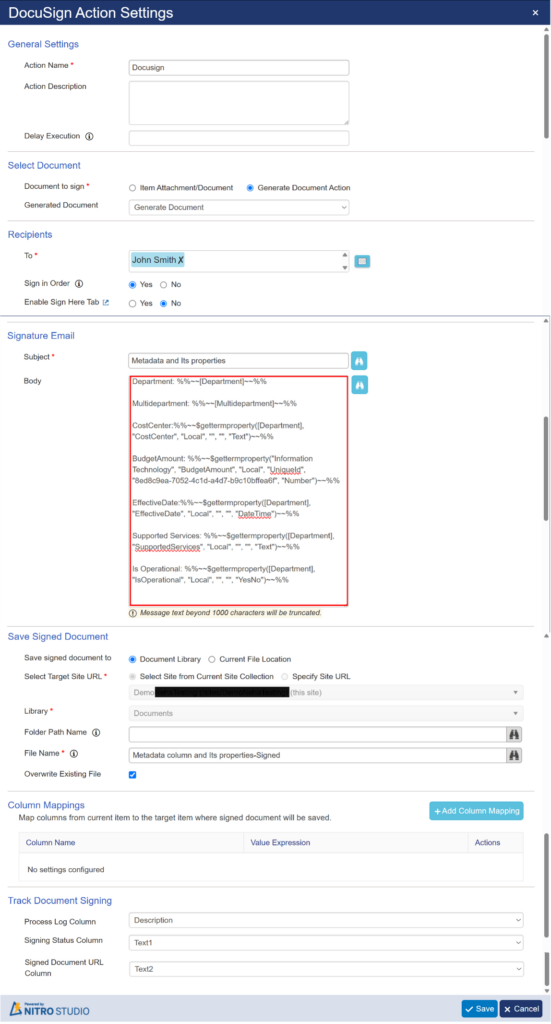

Using Metadata values in DocuSign

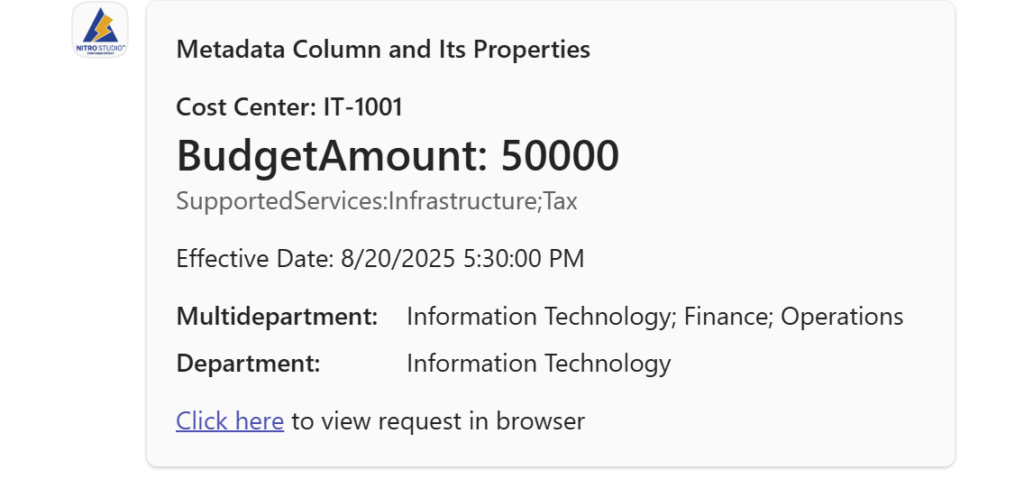

Using Metadata values as placeholders
Using MultiID and MultiValue functionality

2. Metadata Column Example

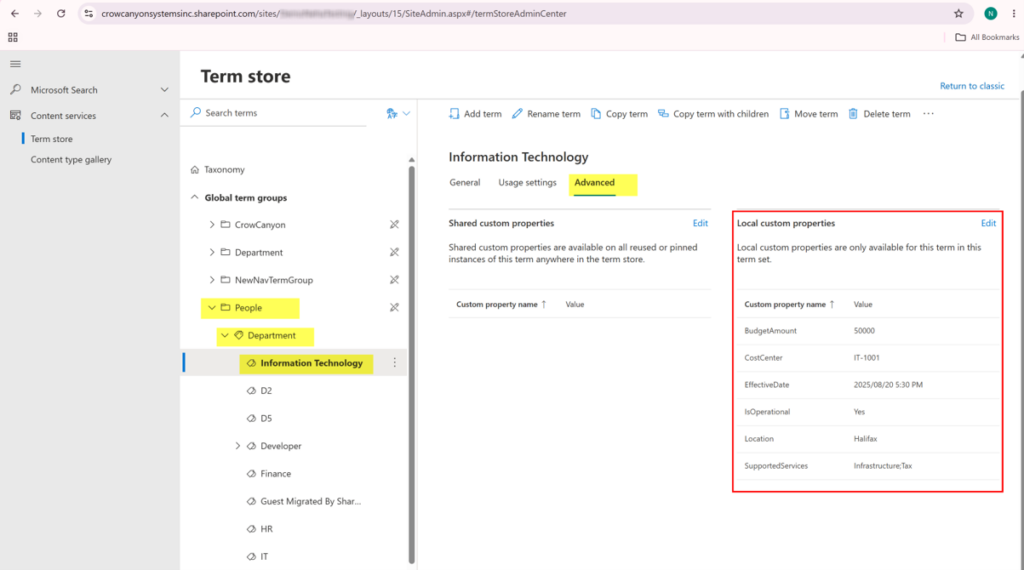

For the scenarios in this document, the following Metadata configuration is used.

Term Group: People

Term Set: Department

Term: Information Technology

Term Custom Properties

Custom Property	Example Value
CostCenter	IT-1001
EffectiveDate	01/01/2026
IsOperational	Yes
BudgetAmount	50000
SupportedServices	Hardware; Software; Network Support

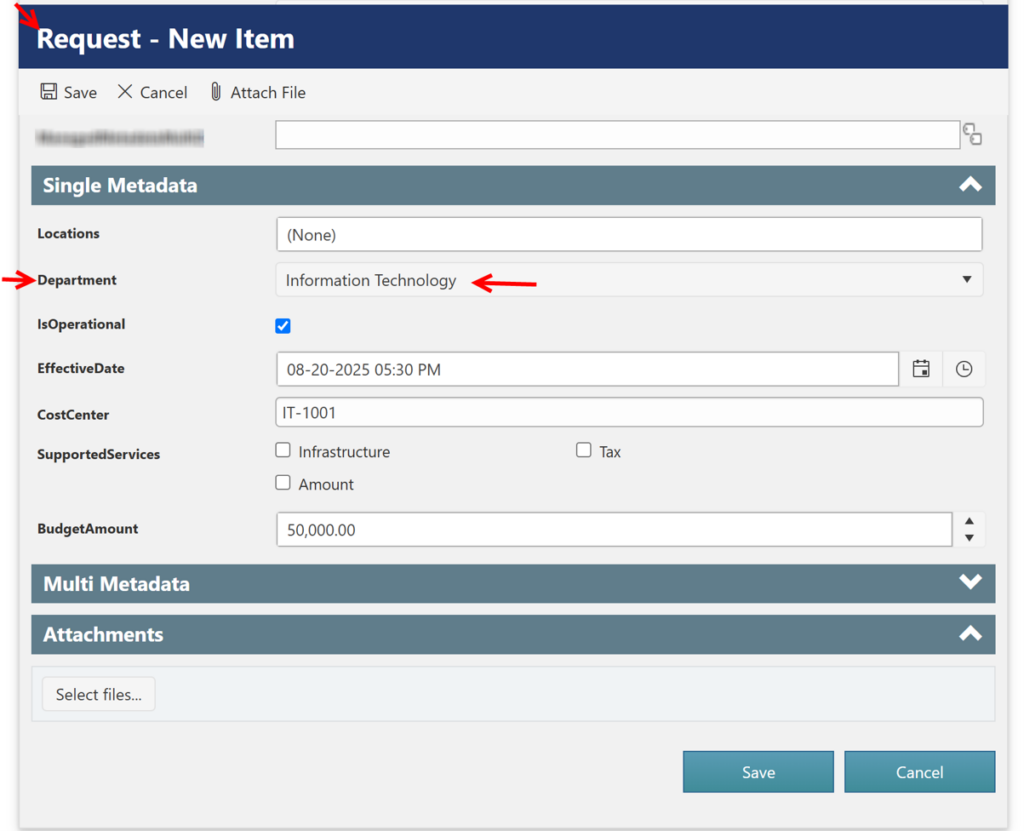

The SharePoint list contains a Metadata column named:

Department

The selected value is:

Information Technology

3. Single-Value and Multi-Value Metadata

A SharePoint Metadata column can be configured as either single-value or multi-value.

3.1 Single-Value Metadata

Only one term can be selected.

Example:

Location = Information Technology

3.2 Multi-Value Metadata

Multiple terms can be selected.

Example:

Location = Information Technology; Finance

The implementation must distinguish between single-value and multi-value Metadata because different operations may require different processing.

Refer this article to create Metadata column: Managed Metadata Column – Crow Canyon Software Support

Metadata in Workflow Conditions

Conditions are one of the most important places where Metadata can be used.

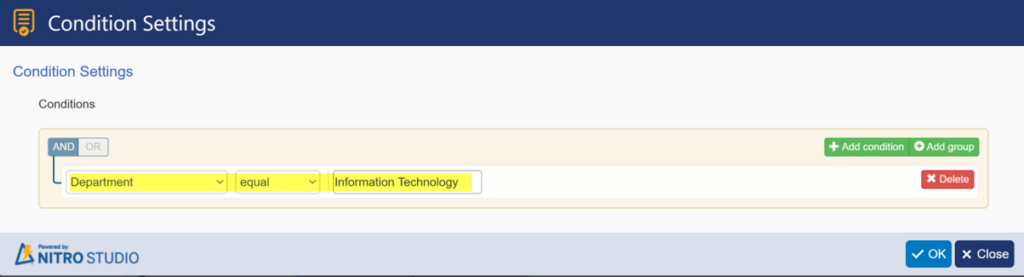

Single Metadata Column in Conditions

The Department column can be directly used in a condition.

Example

Department is equal to Information Technology

If:

Department = Information Technology

the condition evaluates to true.

Other examples

Department is not equal to Information Technology

Department is empty

Department is not empty

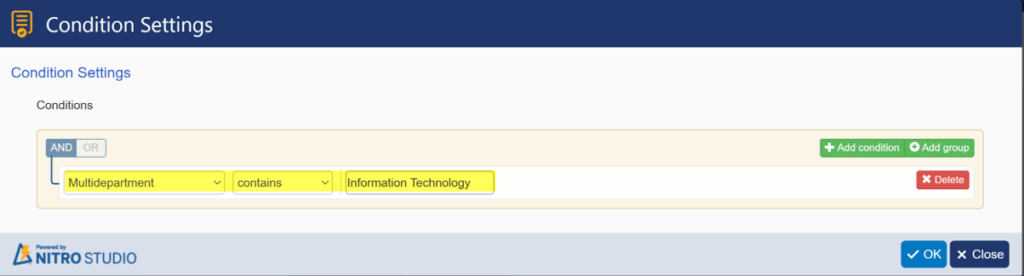

Multi Metadata Column in Conditions

The Multidepartment column can contain multiple Terms.

Example:

Multidepartment =

Information Technology;

Finance; Marketing

A condition can check whether a particular Term is included.

Example

Multidepartment contains Information Technology

The condition is true because Information Technology is one of the selected Terms.

Other examples

Multidepartment contains Finance

Multidepartment is empty

Multidepartment is not empty

Important

For a Multi Metadata column, the business rule should be based on whether a particular Term is selected rather than treating the entire serialized Metadata value as one ordinary text string.

Metadata in Gateway Conditions

Metadata can be used to determine which outgoing link of a Gateway should be followed.

Example

Condition:

Department = Information Technology

Gateway name:

Department-Based Routing

Outgoing links:

Information Technology
Other Departments

For Multi Metadata:

Multidepartment contains Information Technology

the workflow can route through the Information Technology branch.

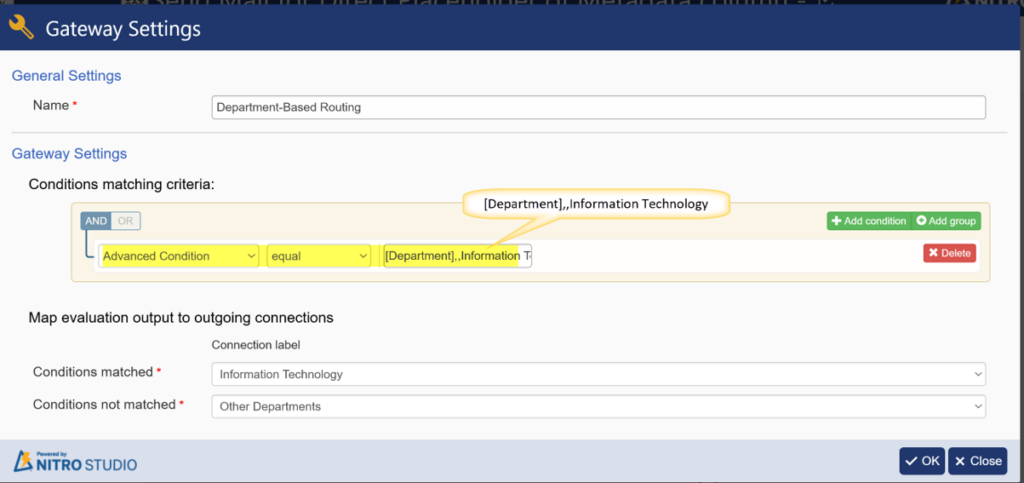

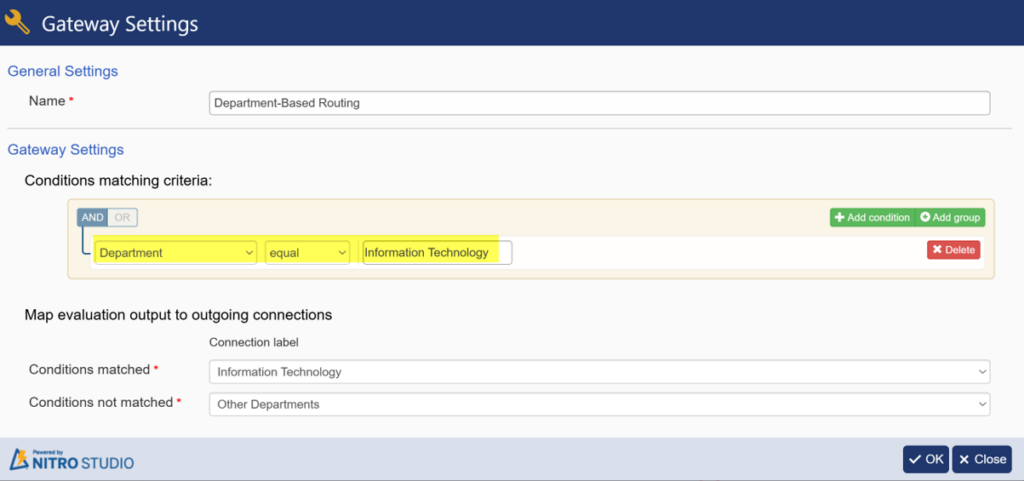

Gateway: Department-Based Routing

Example: Advanced Condition in Gateway

Advanced Condition Contains [ColumnInternalName],,Value

Example: Advanced Condition equal to [Department],,Information Technology

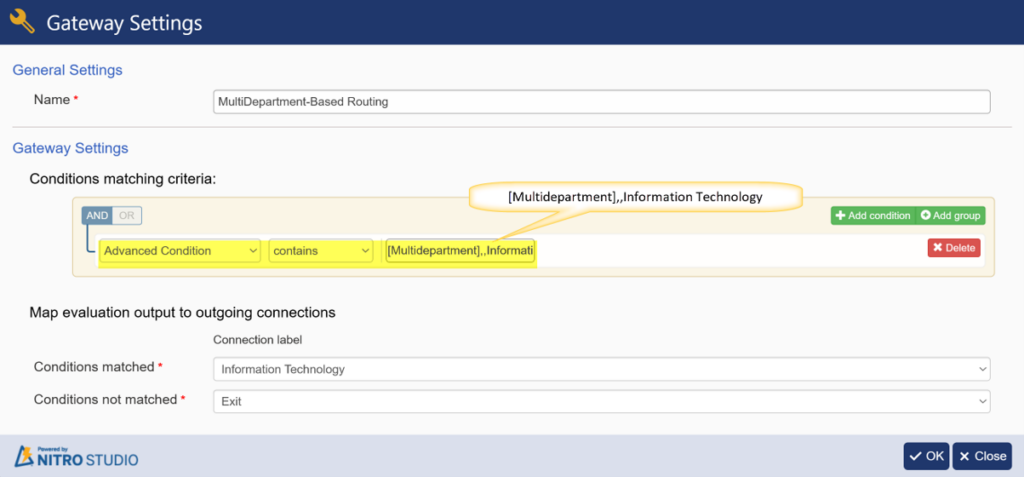

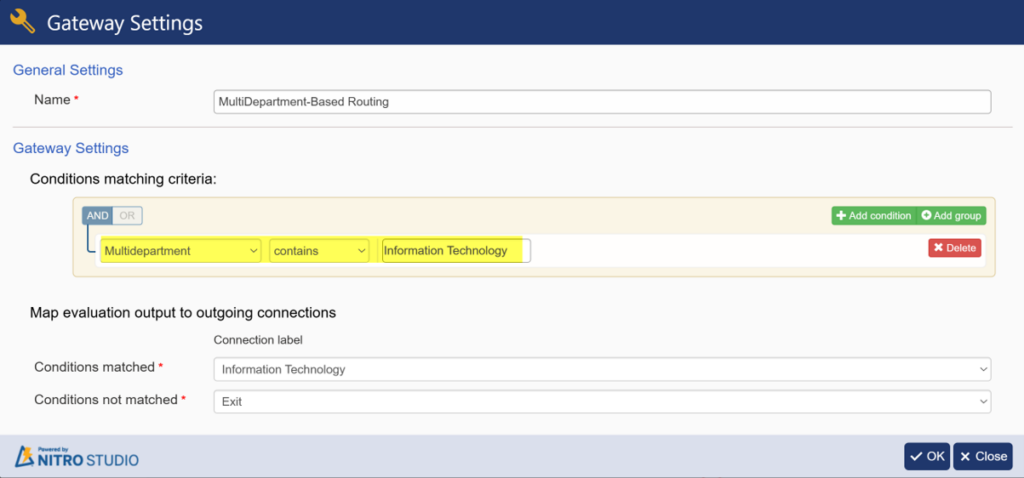

Gateway: MultiDepartment-Based Routing

Advanced Condition Contains [ColumnInternalName],,Value

Example:Advanced Condition Contains [Multidepartment],,Information Technology

Example: Advanced Condition in Gateway

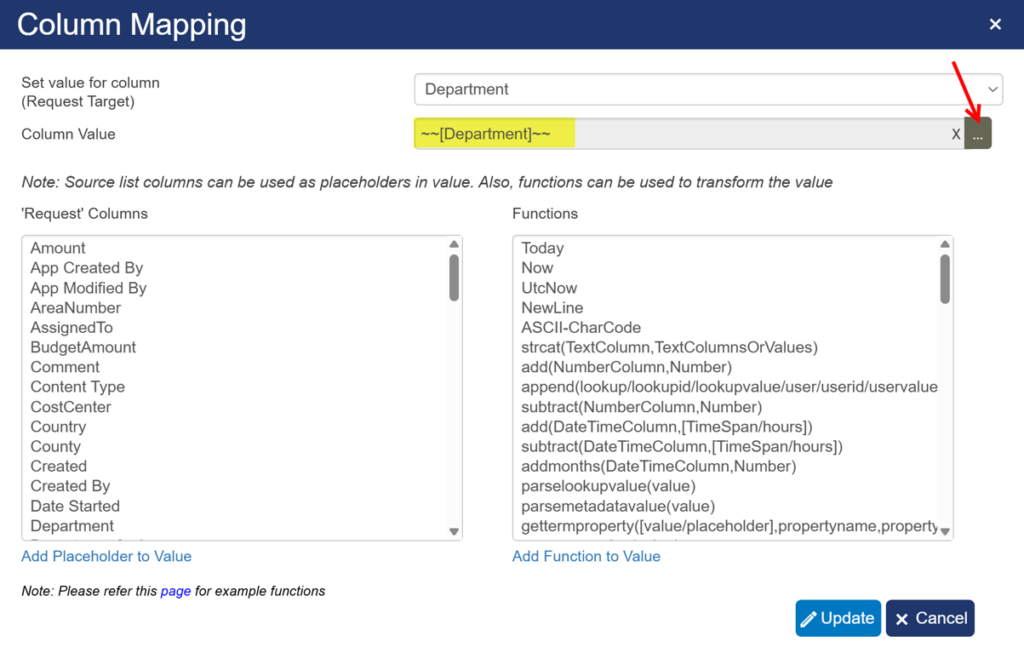

Metadata in Column Mapping

Metadata can be used in Column Mapping when creating or updating an item.

Metadata to Metadata

Example:

Source: Department

Target: Department

The selected Term is mapped to another Metadata column.

This is useful when information needs to be transferred from one item/list to another while retaining the Metadata value.

Multi Metadata to Multi Metadata

Example:

Source: Multidepartment

Target: Multidepartment

If the source contains:

Information Technology;

Finance;

Operations

the target Multi Metadata column can receive the corresponding selected Terms.

This is useful when multiple Terms must be preserved.

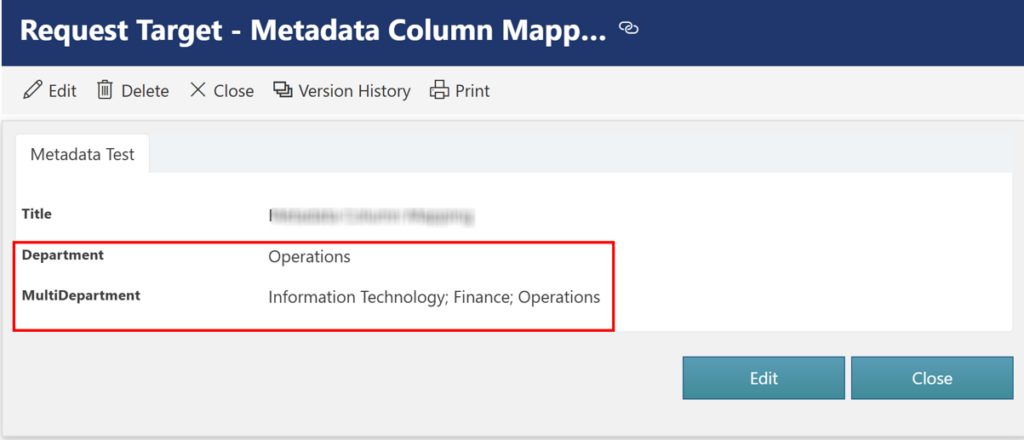

Sample output of Metadata and Multi Metadata column mapping

Metadata and Multi Metadata Mapping to Text Columns

Metadata and Multi Metadata columns can be mapped to Text columns in NITRO Workflows and Custom Actions.

This document explains the different values returned when Metadata columns are mapped using:

LookupId Function
ParseFieldValue Function
Direct Column Mapping

The same methods can be tested for both Single Metadata and Multi Metadata columns.

Source and Target Columns

Column Type	Source Metadata Column	Target Text Column
Single Metadata	Department	DepartmentTextValue
Multi Metadata	Multidepartment	MultiDepartmentTextValue

Example Values

Source Column	Selected Value(s)
Department	Information Technology
Multidepartment	Information Technology; Marketing; Operations

Mapping Methods

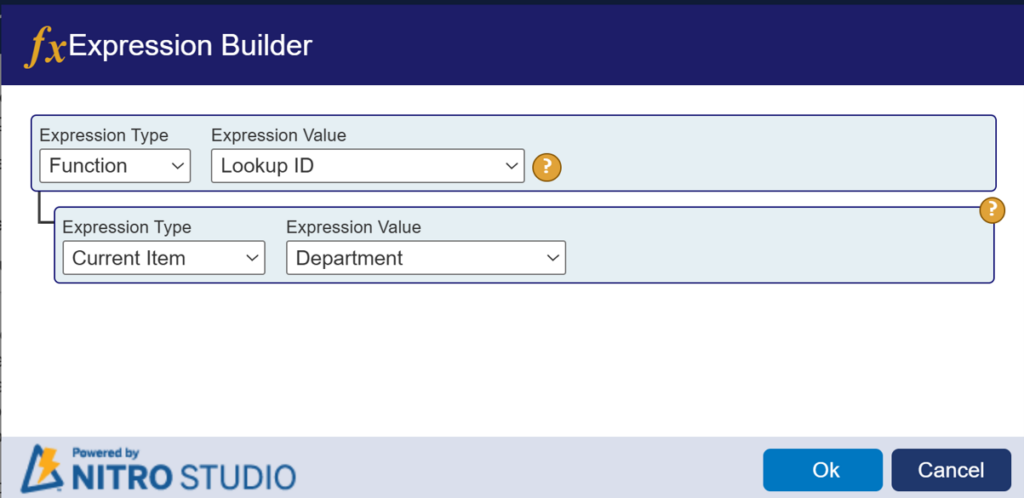

LookupId Function

The LookupId function returns the internal Metadata ID.

Important: LookupId returns the internal Metadata ID. It does not return the Metadata Term Unique Identifier.

Source Column	Target Column	Returned Value
Department	DepartmentTextValue	Internal Metadata ID
Multidepartment	MultiDepartmentTextValue	Internal Metadata ID(s)

Example

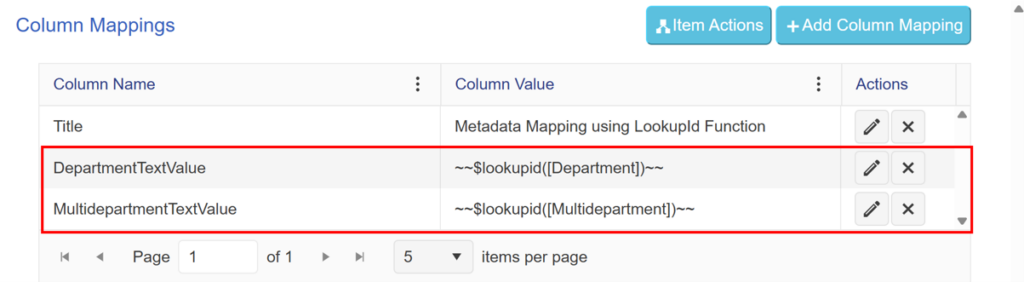

Department → LookupId → DepartmentTextValue

Result:

For Multi Metadata:

Multidepartment → LookupId → MultiDepartmentTextValue

Example:

12;18;25

The actual IDs depend on the selected Terms and environment.

When to Use

Use LookupId when an internal Metadata ID is required.

Do not use it when:

The displayed Term value is required.
The Metadata Term Unique Identifier is required.

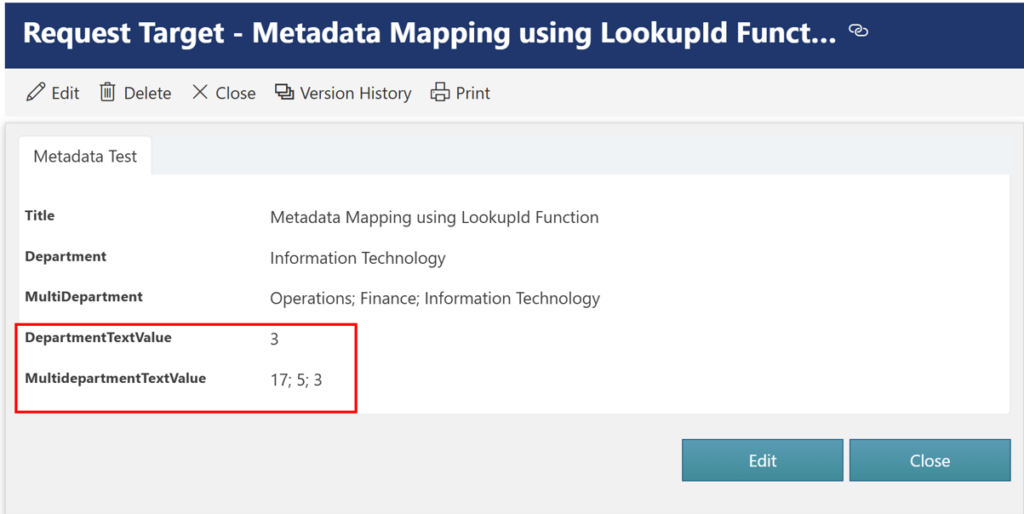

Sample Output:

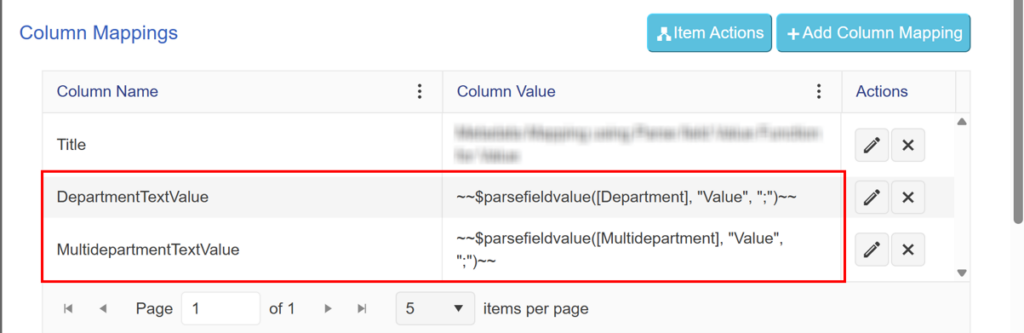

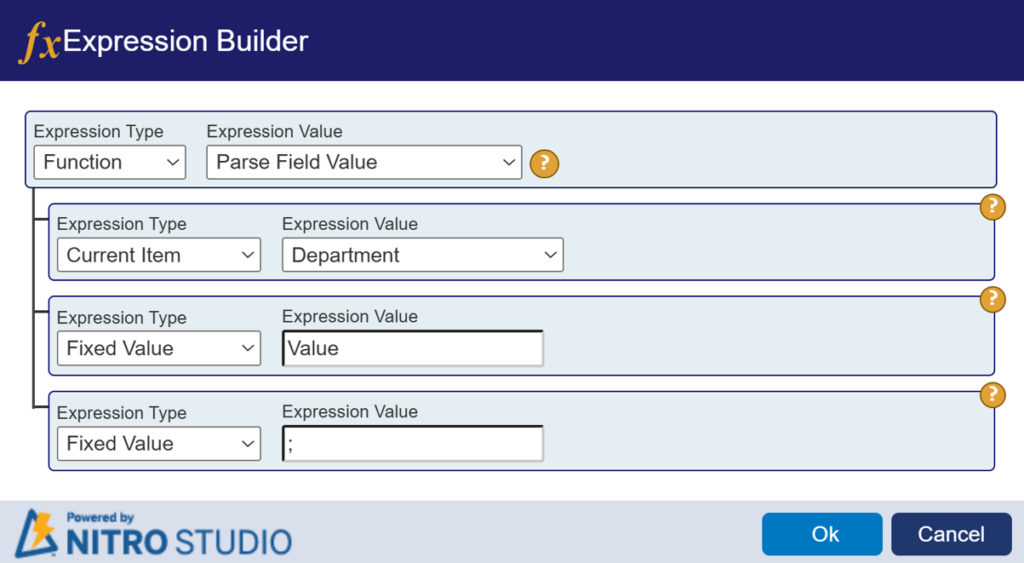

ParseFieldValue Function

The ParseFieldValue function is used to parse the Metadata field value.

When configured using both ID and Value, the resulting value contains:

Internal ID;#Value|Unique Identifier

This includes:

Internal Metadata ID
Metadata Value
Metadata Term Unique Identifier

Expected Behavior

Source Column	Target Column	Returned Value
Department	DepartmentTextValue	Internal ID;#Value\|Unique Identifier
Multidepartment	MultiDepartmentTextValue	Internal ID;#Value\|Unique Identifier for selected Terms

Single Metadata Example

Source:

Department = Information Technology

Using ParseFieldValue with both ID and Value, the result follows this format:

3;#Information Technology|<Unique Identifier>

Where:

3 is the Internal Metadata ID.

Information Technology is the Metadata Value.

<Unique Identifier> is the Metadata Term Unique Identifier.

Multi Metadata Example

Source:Multidepartment =Operations; Finance; Information Technology

The resulting value contains the Internal ID, Value, and Unique Identifier for the selected Terms.

Conceptually:

17;#Operations|<Unique Identifier>;

5;#Finance|<Unique Identifier>;

3;#Information Technology|<Unique Identifier>

The actual format and separators should match the value generated by NITRO.

When to Use

Use ParseFieldValue when the complete Metadata information is required, including:

Internal Metadata ID.
Metadata Value.
Metadata Term Unique Identifier.

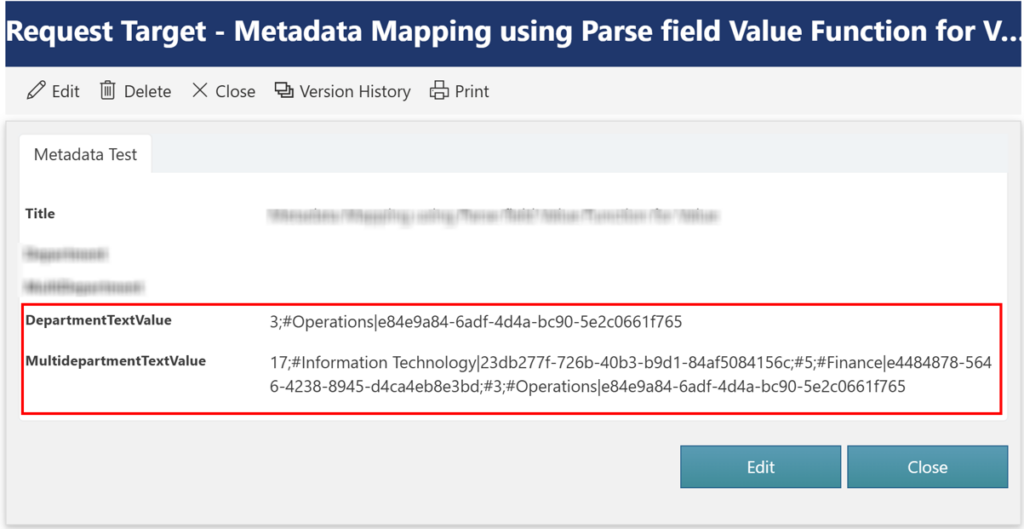

Sample Output:

4. Direct Column Mapping

Metadata can also be directly mapped to a Text column.

Based on the test results, Direct Column Mapping also returns the complete Metadata representation.

The format is:

Internal ID;#Value|Unique Identifier

Therefore, Direct Mapping includes:

Internal Metadata ID
Metadata Value
Metadata Term Unique Identifier

Expected Behavior

Source Column	Target Column	Returned Value
Department	DepartmentTextValue	Internal ID;#Value\|Unique Identifier
Multidepartment	MultiDepartmentTextValue	Internal ID;#Value\|Unique Identifier for selected Terms

Single Metadata Example

Source:Department = Information Technology

Direct mapping:Department → DepartmentTextValue

Result:

12;#Information Technology|<Unique Identifier>

Multi Metadata Example

Source: Multidepartment = Operations; Finance; Information Technology

Direct mapping:

Multidepartment → MultiDepartmentTextValue

Conceptual result:

17;#Operations|<Unique Identifier>;

5;#Finance|<Unique Identifier>;

3;#Information Technology|<Unique Identifier>

The exact formatting should be verified based on the output generated by NITRO.

When to Use

Use Direct Column Mapping when the complete Metadata representation needs to be copied to a Text column.

This preserves:

Internal Metadata ID.
Metadata Value.
Unique Identifier.

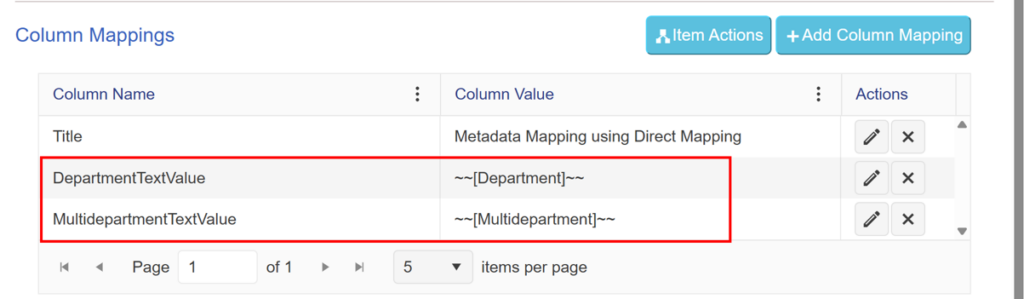

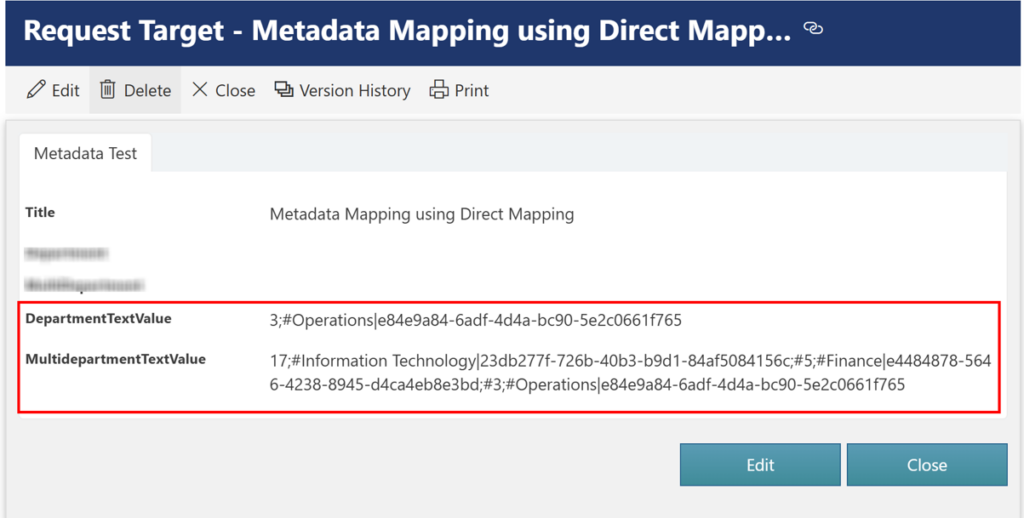

Sample Output:

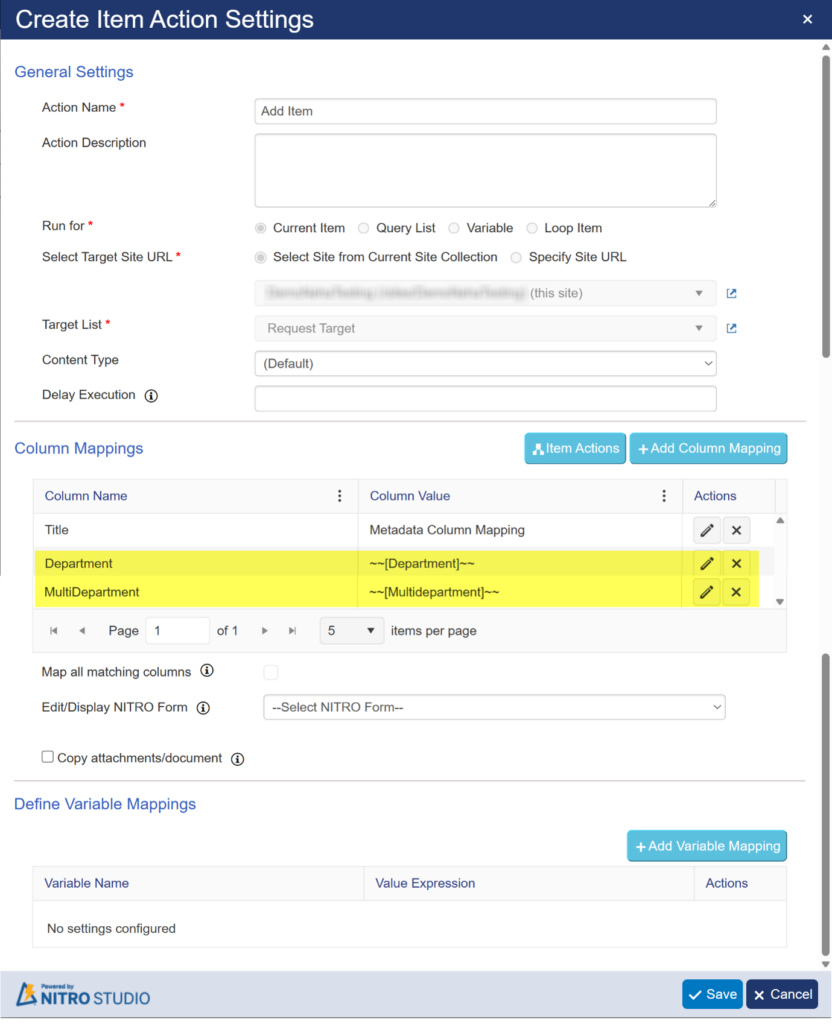

Metadata in Create and Update Item Actions

Refer NITRO™ Workflows > Configuring Workflows > Workflow Actions to configure actions in NITRO Workflows

Refer Custom Actions > Action Types to configure actions in Custom Actions

Metadata and Multi Metadata columns can be used in Create Item / Create List Item and Update Item actions to copy or update selected Terms.

Source Column	Target Column	Example Result
Department	Department	Information Technology
Multidepartment	Multidepartment	Information Technology; Finance; Operations

Example

The action can map:

Department → Department

Multidepartment → Multidepartment

The selected Metadata Terms are preserved in the target item.

For Create Item, the values are added to the newly created item.

For Update Item, the values are applied to the existing item.

This can be used to create or update related items while preserving Single and Multi Metadata selections.

Using Metadata Columns in Query List Action

1. Overview

The Query List action can be used to query list items based on values selected in Single Metadata and Multi Metadata columns.

This is useful when a workflow needs to:

Find matching items in another list.
Match Metadata values between two lists.
Match Metadata using internal Metadata IDs.
Check whether a term selected in one Metadata column exists in a Multi Metadata column.
Use the queried items in subsequent actions such as Add Item or Update Item.

NITRO Query List supports column placeholders from the current workflow item in query conditions.

Example scenario:

Workflow is configured on the Request list.
The Roles list contains Department and MultiDepartment Metadata columns.
The Request list contains Department and Multidepartment Metadata columns.

2. Query List Using Metadata Value

Metadata values can be passed directly using a column placeholder.

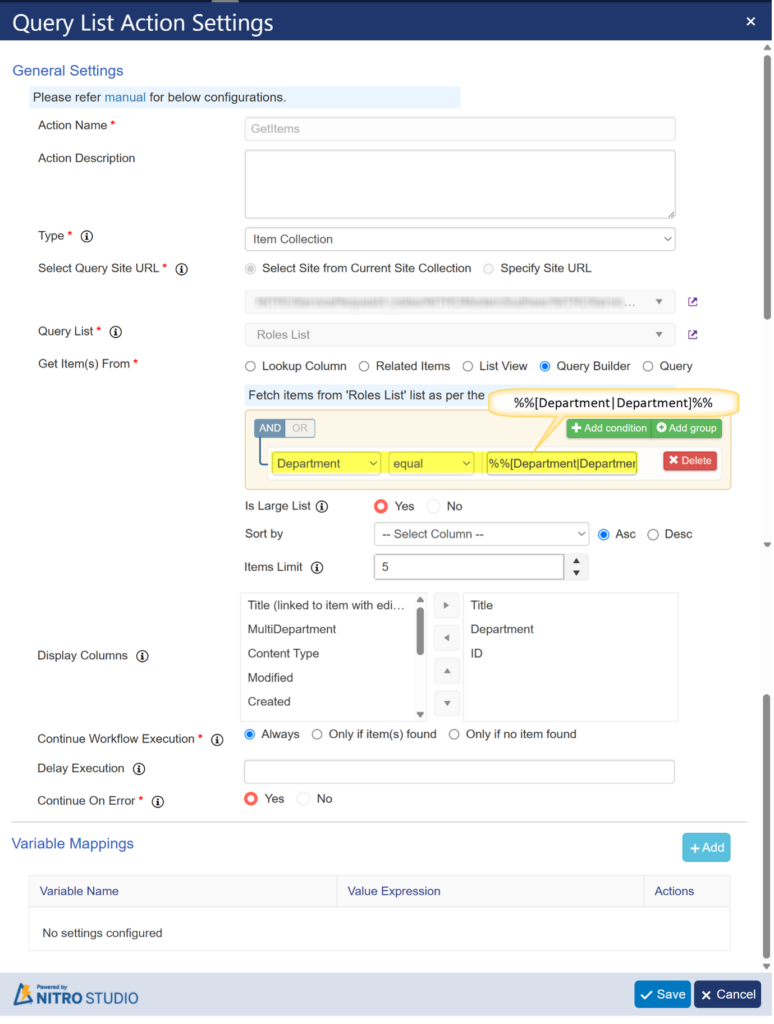

Single Metadata → Single Metadata

Department = %%[Department|Department]%%

Here:

Department on the left is the column in the Roles list being queried.
%%[Department|Department]%% gets the selected Department term from the current Request item.

Example

If the Request item has:

Department = Information Technology

the query effectively searches for Roles items where:

Department = Information Technology

Use when: the comparison should be based on the selected Metadata term value.

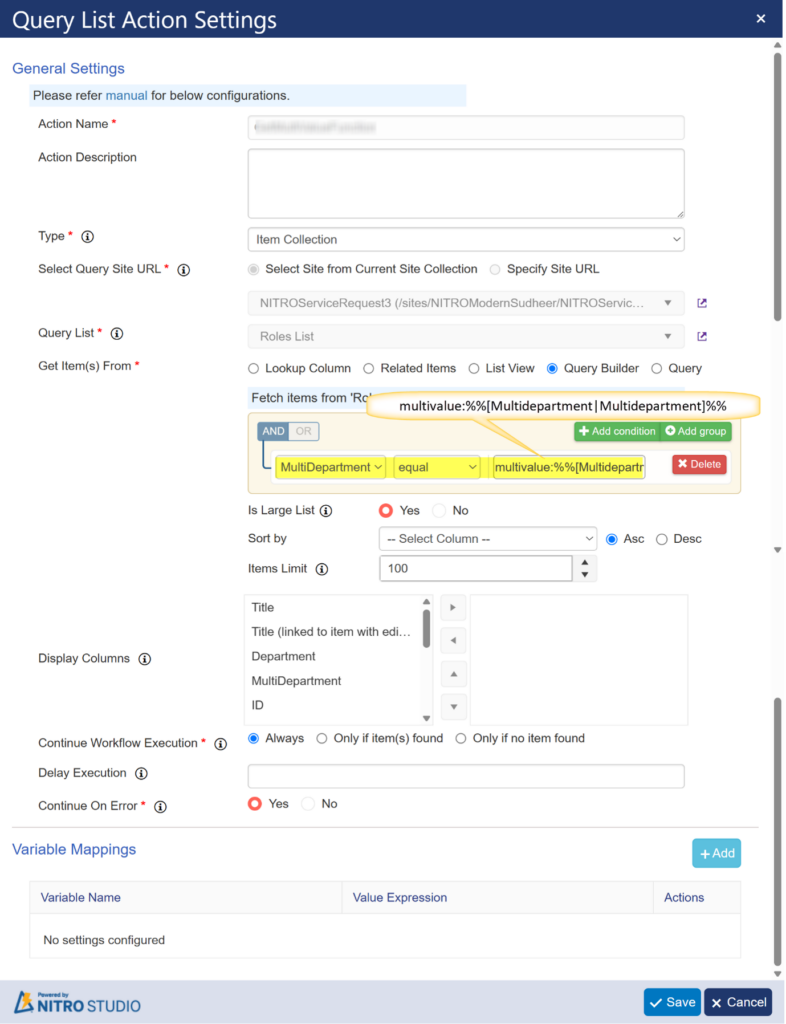

3. Multi Metadata Using multivalue

For Multi Metadata columns, the multivalue: prefix can be used with the selected Metadata values.

Query:

MultiDepartment is equal to multivalue:%%[Multidepartment|Multidepartment]%%

Here:

%%[Multidepartment|Multidepartment]%% gets the selected Metadata values from the current Request item.
multivalue: tells the Query List action to compare the query against multiple Metadata values.
The Roles list is searched based on the selected values in the Request’s Multidepartment.

For example, if the Request contains:

Information Technology; Human Resources; Operations

the query uses those selected terms to find matching Roles items.

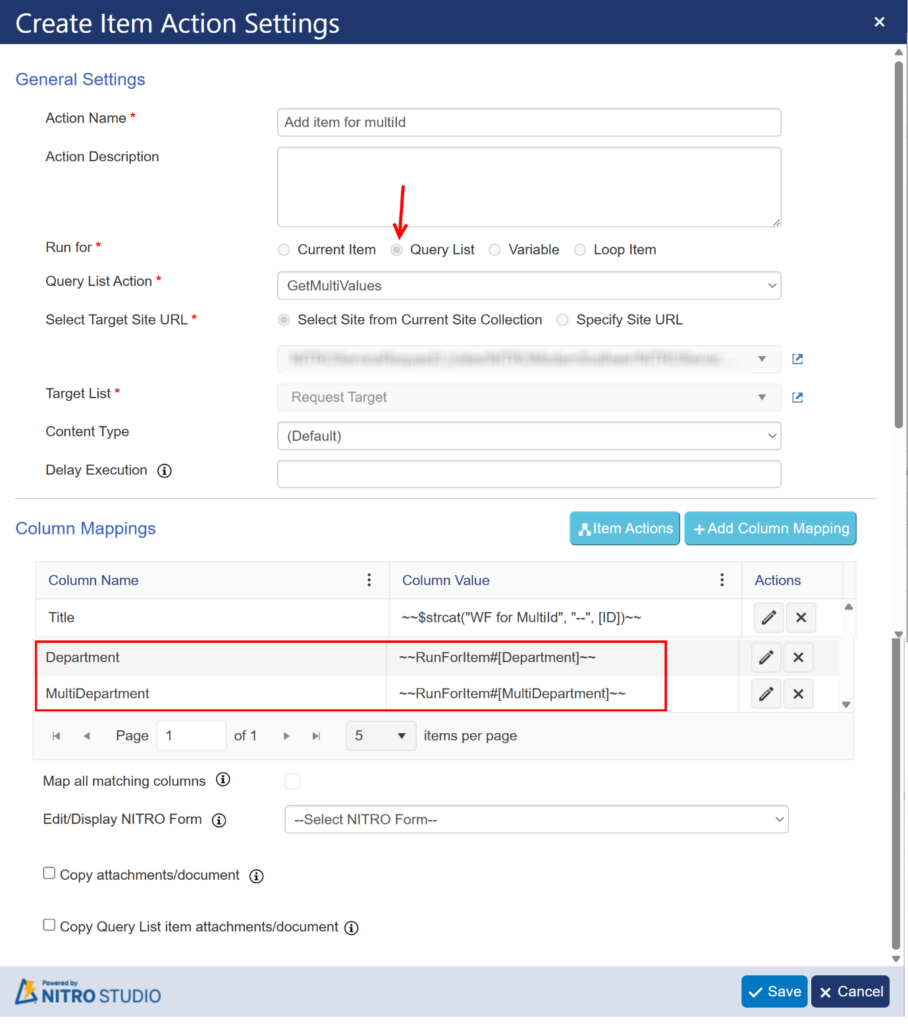

After the Query List returns the matching Roles items, the Add Item action can run for each returned item.

The Metadata values can then be mapped using the Expression Builder:

Target Column	Expression
Department	~~RunForItem#[Department]~~
MultiDepartment	~~RunForItem#[MultiDepartment]~~

RunForItem refers to the current item returned by Query List, not the original Request item.

Use this when: you want to work with the term values selected in a Multi Metadata column.

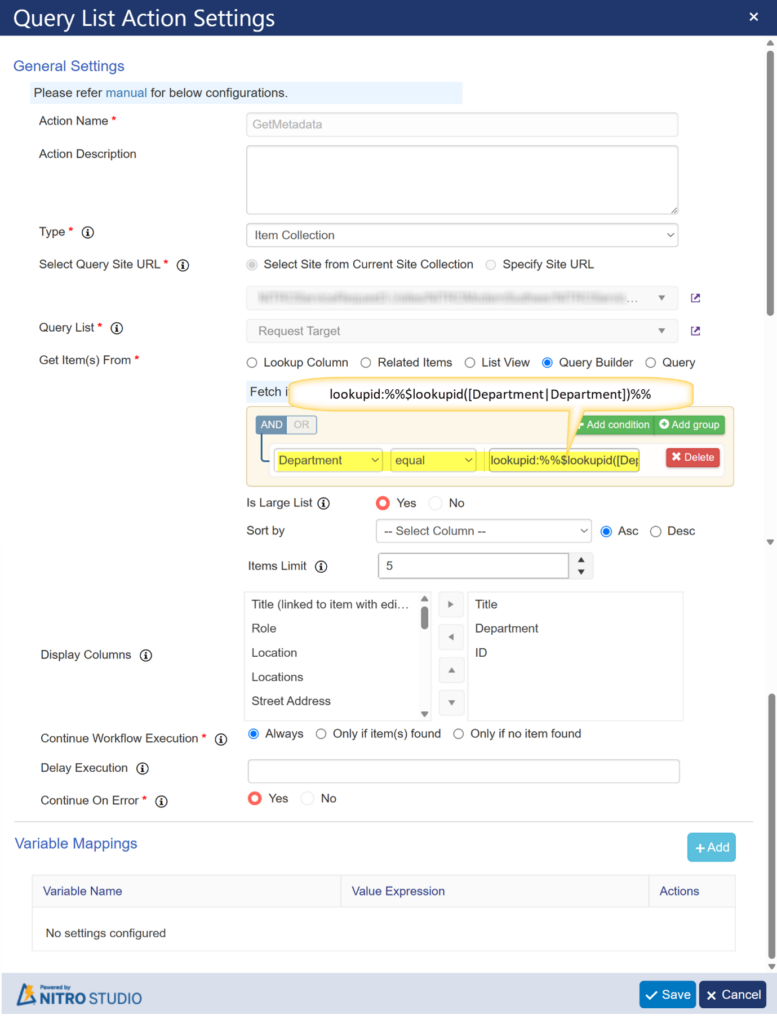

4. Query List Using Metadata ID

Metadata can also be queried using its internal Metadata ID.

Single Metadata → Metadata ID

Query:

Department = lookupid:%%$lookupid([Department|Department])%%

Here:

$lookupid([Department|Department])

gets the Internal Metadata ID of the selected Department term.

The lookupid: prefix tells Query List to compare using that ID.

For example:

Department = lookupid:12

This matches the Roles item’s Department based on the Metadata internal ID.

Use this when: you want an ID-based comparison for a Single Metadata column.

Use when: the comparison should be based on the internal Metadata ID instead of the displayed term value.

5. Multi Metadata Using multiid

For Multi Metadata, multiple Metadata IDs can be passed using the multiid: prefix.

Query:

MultiDepartment is equal to multiid:%%$lookupid([Multidepartment|Multidepartment])%%

This is similar to the previous scenario, but instead of comparing the Metadata values, it uses the Metadata internal IDs.

$lookupid([Multidepartment|Multidepartment])

returns the internal Metadata ID(s) for the selected terms.

The multiid: prefix tells Query List to perform the comparison using multiple Metadata IDs.

Use this when: you want to match the exact Metadata terms by ID rather than their displayed values.

This is generally more reliable than value-based matching when terms may have similar names or when you specifically want ID-based matching.

6. Metadata Relationship Matching Using contains

A Multi Metadata column can also be queried to determine whether it contains a specific Metadata value.

Query

Multidepartment contains %%[Department|Department]%%

In this example:

Multidepartment is a Multi Metadata column.
Department is a Single Metadata column.
The selected Department term from the current Request is checked against the terms selected in Multidepartment.

Example

Request:

Department = Information Technology

and:

Multidepartment =

Information Technology; Finance; Operations

The query checks whether:

Multidepartment contains Information Technology

and returns the matching item.

Use when: one Metadata column contains multiple terms and you need to determine whether it contains a specific term.

7. Query List → Add Item Using Metadata

Query List results can be used in subsequent actions such as Add Item. NITRO documents Query List as an action that generates an item or item collection for use by other actions. (Crow Canyon Info)

For example:

Request

↓

Query Roles List

↓

Matching Roles items

↓

Add Item

When Add Item is configured to run for the Query List results, the Metadata values of the returned Roles item can be mapped to the target list.

Mapping

Target Column	Expression
Department	~~RunForItem#[Department]~~
MultiDepartment	~~RunForItem#[MultiDepartment]~~

RunForItem refers to the item currently being processed from the Query List result.

Example

If the Query List returns a Roles item containing:

Department = Information Technology

and:

MultiDepartment =

Information Technology; Finance; Operations

the Add Item action maps those values to the corresponding Metadata columns in the target list.

8. Common Metadata Query Scenarios

The following table summarizes the main scenarios.

Scenario	Example	Purpose
Single Metadata by value	Department = %%[Department\|Department]%%	Match a Single Metadata term by value
Single Metadata by ID	Department = lookupid:%%$lookupid([Department\|Department])%%	Match a Single Metadata term by internal ID
Multi Metadata by value	MultiDepartment = multivalue:%%[Multidepartment\|Multidepartment]%%	Match using multiple Metadata values
Multi Metadata by ID	MultiDepartment = multiid:%%$lookupid([Multidepartment\|Multidepartment])%%	Match using multiple Metadata IDs
Multi Metadata contains value	Multidepartment contains %%[Department\|Department]%%	Check whether a Multi Metadata column contains a selected term
Empty Metadata	Department is empty	Find items where Metadata is not selected
Non-empty Metadata	Department is not empty	Find items where Metadata has a selected term

9. When to Use Each Method

Use Metadata Value

Use:

%%[Department|Department]%%

or:

multivalue:%%[Multidepartment|Multidepartment]%%

when the query should work with the selected Metadata values.

Use Metadata ID

Use:

lookupid:%%$lookupid([Department|Department])%%

or:

multiid:%%$lookupid([Multidepartment|Multidepartment])%%

when the query should work with the internal Metadata IDs.

Use contains

Use:

Multidepartment contains %%[Department|Department]%%

when a Single Metadata term needs to be checked against a Multi Metadata column.

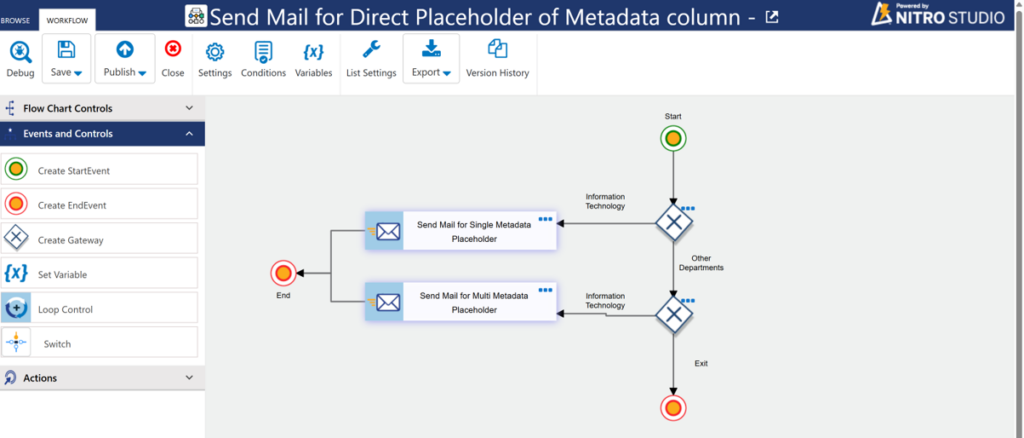

Metadata in Send Mail Action

Metadata values and Term custom properties can be included in the Send Mail action.

Metadata Type	Example Placeholder	Example Output
Single Metadata	{Department}	Information Technology
Multi Metadata	{Multidepartment}	Information Technology; Human Resources; Operations

Example Email Body

The request has been submitted.

Department: Information Technology

Departments: Information Technology; Finance; Operations

The selected Term’s custom properties can also be retrieved and included in the email. For example, if:

Department = Information Technology

the email can include values such as:

Cost Center: CC1001

Effective Date: 01/01/2026

Operational: Yes

Budget Amount: 50000

Supported Services: Hardware; Software; Network Support

This is useful when Metadata Terms and their custom properties are used as a centralized source of information for email notifications.

Refer NITRO™ Workflows > Configuring Workflows > Workflow Actions > Send Mail to configure send mail action in NITRO Workflows.

Mail Template Image:

Similarly, you can include $gettermproperty() function with other configurations as per requirement to get Term property values

Sample Output:

Metadata in Generate Document and DocuSign Actions

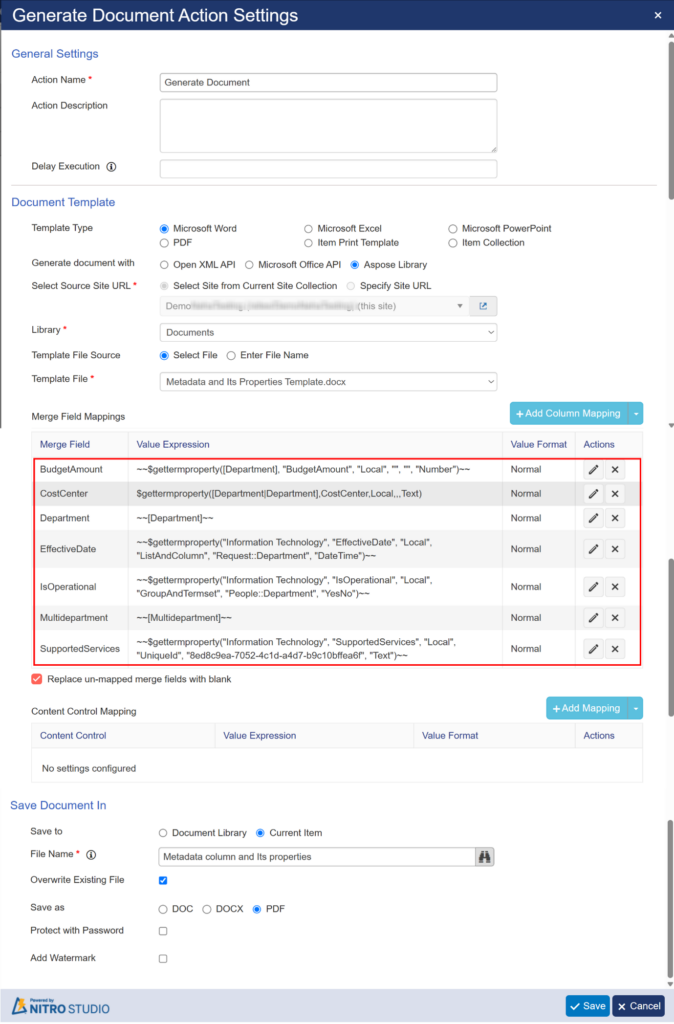

Generate Document:

Metadata columns can be used in Column Mappings to populate Word/Excel merge fields with selected Metadata values. Column placeholders and supported functions can also be used in the mapping.

Refer NITRO™ Workflows > Configuring Workflows > Workflow Actions > Generate Document to configure Generate document action

Use Case: Populate a generated document with values such as:

Department: Information Technology

Multidepartment: Information Technology; Human Resources; Operations

Term custom properties can be used through GetTermProperty if the function is available in the mapping’s Expression Builder.

Sample Output:

DocuSign:

Metadata values can be used where the DocuSign action provides a supported column mapping or placeholder field. GetTermProperty support should be verified in the specific DocuSign mapping field before use.

Refer Manual for DocuSign Action – Crow Canyon Software Support to configure Docusign action

Use Case: Populate a document/signing request with Metadata-based information such as Department.
